• Powerful airflow
  • Stylish in design
  • Easy to use
  • Comfortable and reliable
  • 5 year warranty on parts and labour
  • National Samsung Service Network
  • MEPS compliant
  • Product support line
  • comfortable and reliable

Working to keep you and your family comfortable all year round

A Samsung inverter reverse cycle Ducted Air Conditioner is designed to enable each room in your home to be cooled or heated by one system. Ducted Systems are also relatively unobtrusive as the conditioned air is distributed through ducts hidden in your roof space to outlets in the ceiling of each room. The primary components of your Samsung Ducted System consist of the indoor unit, outdoor unit and controller.

Samsung Ducted Air Conditioners are designed to keep on working, even on those extremely hot or cold days. With an operating range of -15°C to 50°C outside air temperature for cooling, and -20°C to 24°C for heating, you can be assured that your unit can work when you need it*

  • Get in touch

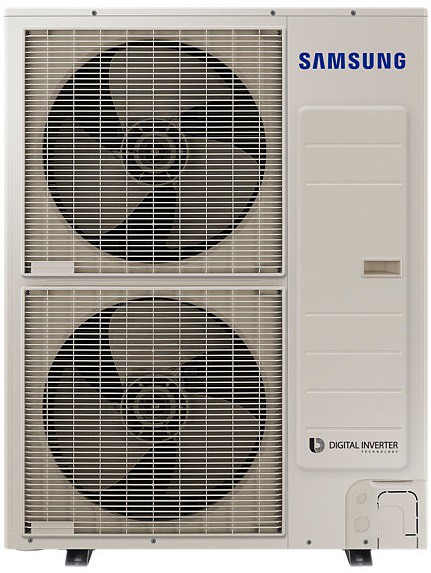

    • 9.0kW Ducted Split

      AC090HBHFKH/SA Indoor
      AC090HCAFKH/SA Outdoor

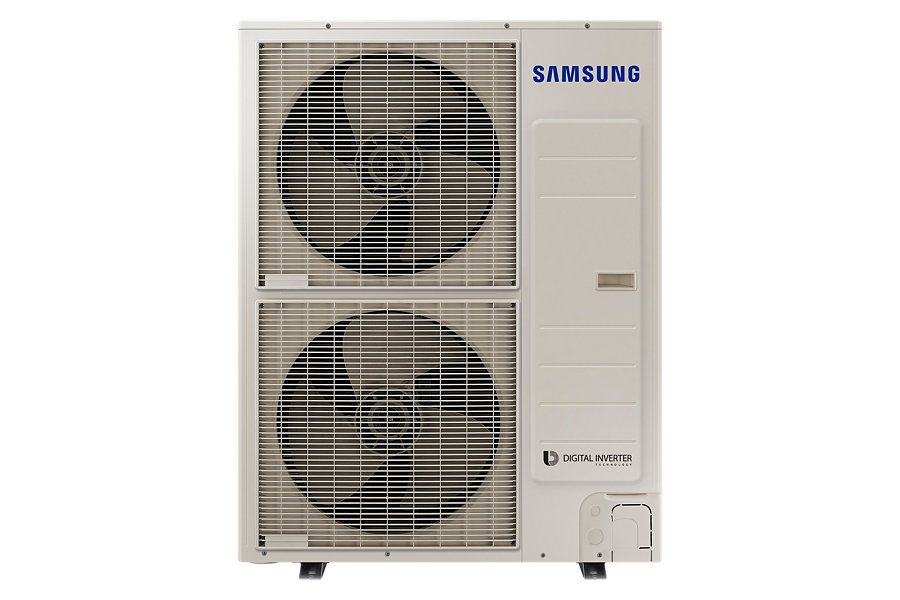

    • 12.0kW Ducted Split

      AC120HBHFKH/SA Indoor
      AC120HCAFKH/SA Outdoor


    • 16.0kW Ducted Split

      AC160JNHFKH/SA Indoor
      AC160JXAFNH/SA Outdoor


  • Features & Benefits

    of Samsung products

    * Not all features available on all models

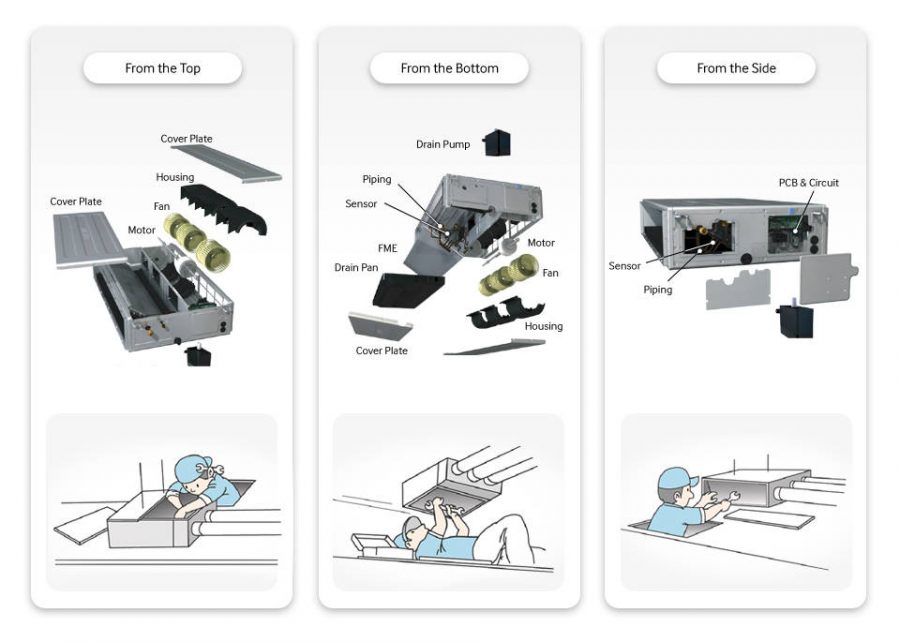

  • 3-way service access for easy maintenance


    Most ducted air conditioners are installed in a variety of locations, so they need to be accessed in different ways for maintenance. The Samsung DUCT S Air Conditioner is designed to be accessed from three directions – top, side and bottom – using an easy to remove Slide Fit cover. As a result, it’s much easier to maintain wherever it’s installed.

      • 8-Zone Touch Screen Controller

        This stylish touch screen enables control of the functions of your Duct S system as well as the open/close operation of up to 8 zones in your home. This eliminates the need to have a separate zone controller or “light switch” type panel on your wall. Model codes (Sold Separately): MWR-ZS00 (5kW to 14kW models) MWR-ZS00N (16kW to 20kW models) Damper controller and zone touch controller package MWR-ZS10 (5kW to 14kW models) MWR-ZS10N (16kW to 20kW models) Zone touch controller only

      • control-features-2

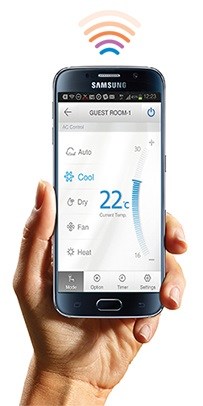

      • Smart Air Conditioner App

        Features that control your comfort from virtually anywhere*. – Controlling of zones via Wi-Fi is not available – Existing Wi-Fi infrastructure required – Samsung ‘Smart Air Conditioner (CAC)’ App needs to be installed into your compatible smart phone.

      • Easy to use and Stylish in design

        To accompany your Ducted Air Conditioning System, is a choice of controllers. The MWR-WE10N is a LCD Backlit controller with a host of features.

      • Warranty Support

        Samsung Air Conditioning Committed to After Sales and Warranty Support.
